DESCRIPTION
SANDCRAFT Motorsports has once again raised the bar.

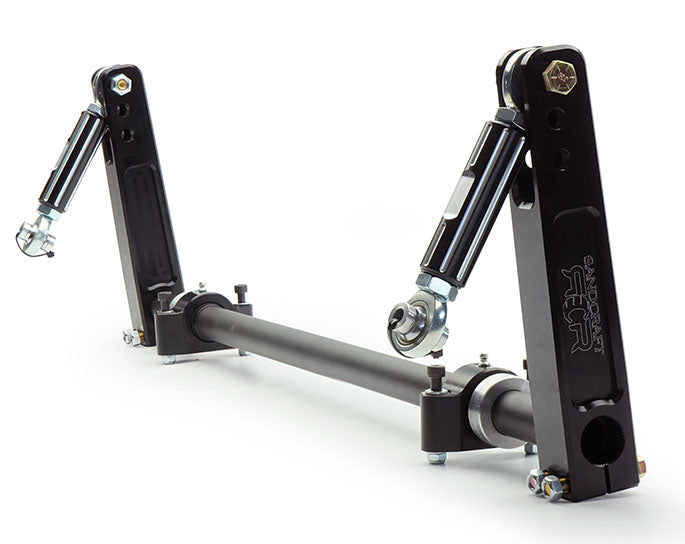

Our all new Sway Bar kit is designed to bolt directly in while giving you Maximum performance.

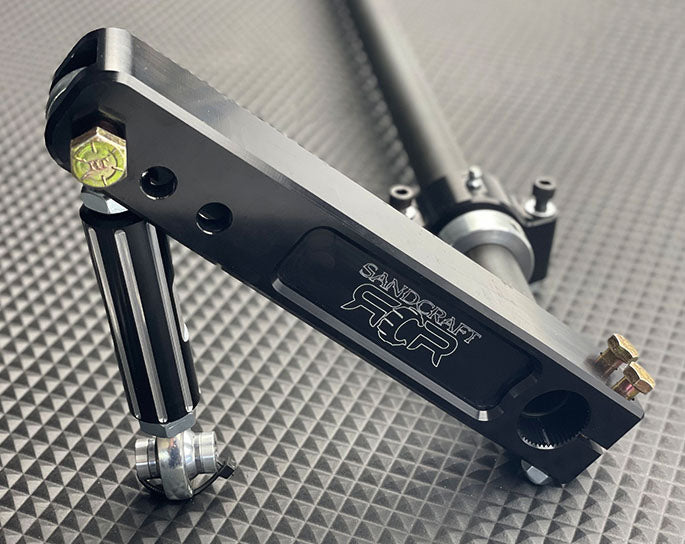

Our progressive rate Sway Bar combo has top of line parts configured into the best all around handling characteristics. Whether you rock crawl or run wide open this is designed for you. The Sway Bar arm has 3 holes of adjustability. Move the bolt closer to the main tube to stiffen your ride to its maximum level or move the bolt as far away from the man tube to allow the softest feel. Rest assured the good guys at SANDCRAFT have gone the extra mile to heat treat, harden and anodize all key parts to make sure its the best product available.
RZR sway bar specs:
closest – 324 pounds
middle – 302 pounds
farthest – 280 pounds
VEHICLE FITMENT
2014 RZR XP 1000
2015 RZR XP 1000
2016 RZR XP 1000
2017 RZR XP 1000
2017 RZR XP 1000 – HIGHLIFTER
2018 RZR XP 1000
2018 RZR XP 1000 – HIGHLIFTER
2018 RZR XP 1000 – ROCK AND TRAIL
2019 RZR XP 1000
2019 RZR XP 1000 – HIGHLIFTER
2019 RZR XP 1000 – ROCK AND TRAIL
2020 RZR XP 1000
2020 RZR XP 1000 – HIGHLIFTER
2020 RZR XP 1000 – ROCK AND TRAIL
2020 RZR TRAIL 1000
2020 RZR TRAIL S 1000
2021 RZR XP 1000
2021 RZR XP 1000 – HIGHLIFTER
2021 RZR XP 1000 – ROCK AND TRAIL
2021 RZR TRAIL 1000
2021 RZR TRAIL S 1000
2022 RZR XP 1000
2022 RZR XP 1000 – HIGHLIFTER
2022 RZR XP 1000 – ROCK AND TRAIL
2022 RZR TRAIL 1000
2022 RZR TRAIL S 1000
2016 RZR XP TURBO
2017 RZR XP TURBO
2018 RZR XP TURBO
2018 RZR XP TURBO – FOX
2018 RZR XP TURBO – DYNAMIX
2019 RZR XP TURBO
2019 RZR XP TURBO – FOX
2019 RZR XP TURBO – DYNAMIX
2020 RZR XP TURBO
2021 RZR XP TURBO
2022 RZR XP TURBO
ADDITIONAL INFORMATION
| Weight | 15 lbs |
|---|---|
| Dimensions | 42 × 9 × 4 in |
| MAKE |
POLARIS |
| MODEL |
RZR TRAIL 1000, RZR TRAIL S 1000, RZR TURBO – DYNAMIX, RZR TURBO – FOX, RZR XP 1000, RZR XP 1000 – HIGHLIFTER, RZR XP 1000 – TRAIL AND ROCK, RZR XP TURBO |
| PART |
SWAY BARS |
| MODEL YEAR |
2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
| SEATS |
2, 4 |
