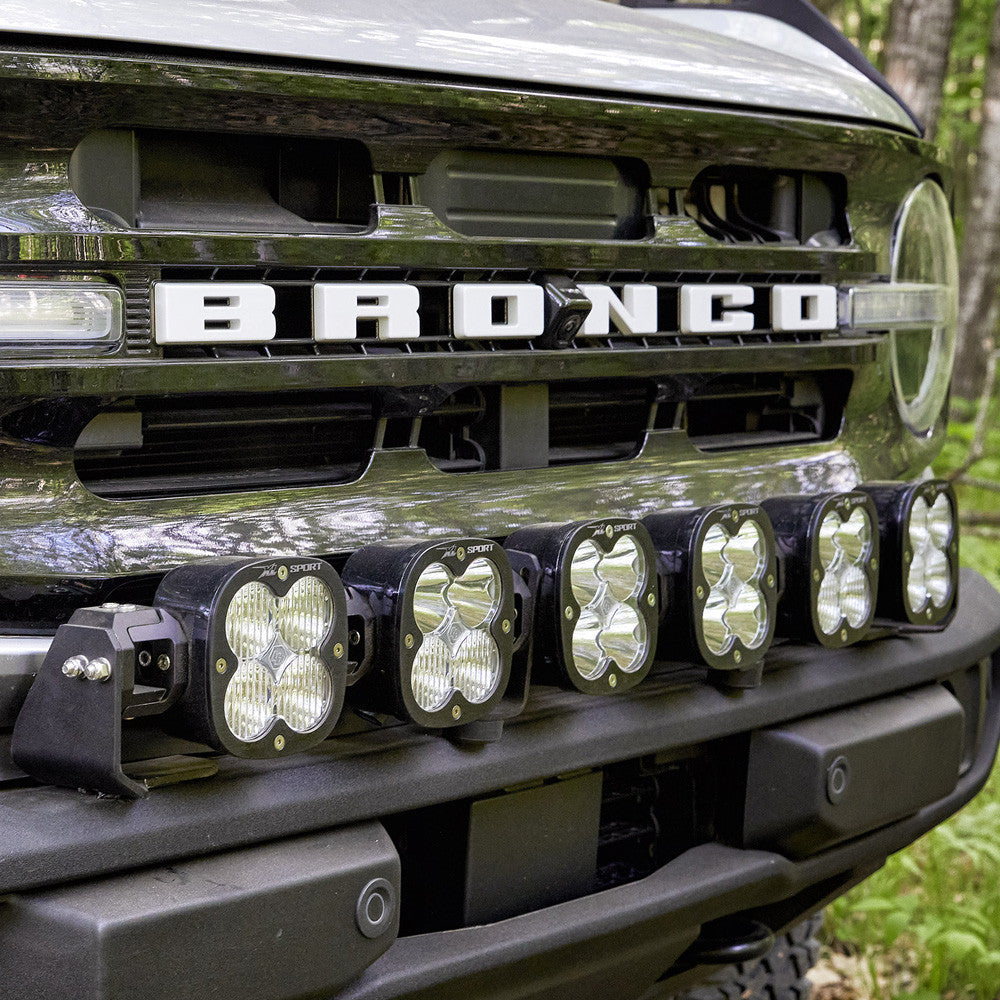

6 XL Linkable Light Bar Kit Plastic Bumper Mount 21-Up Ford Bronco Baja Designs

  • Sale
  • Regular price $1,779.95
Shipping calculated at checkout.


Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards.

A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit is a turn key LED system for theFord Broncoowner that is lookingto drastically improve the looks and performance of their truck.

Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Lumens:18,900 Utilizing24 LEDs
  • Wattage/Amps:156W / 12A
  • LED Life Expectancy:49,930 Hours
  • Front Lens:Hard Coated Polycarbonate
  • Housing:Powder Coated Cast Aluminum
  • Bezel:Billet Machined Aluminum
  • Hardware and Bracket Material:Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof, Submersible to 9ft)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

  • x2 XL SportSpotLED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x6 XL Sport Rock Guards
  • Toggle Switch Wiring Harness
  • Vehicle Specific Mounts

Application:

2021 - OnFord Bronco w/Plastic Bumper
Adjustability:

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

High Speed Spot:A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
