50" Denali ATV Universal Snow Plow Kit - Honda Rancher

  • Sale
  • Regular price $625.00
Shipping calculated at checkout.


Click the question mark ? by the mount plate drop down list to see complete fitment.
KIT INCLUDES:  Pulley kit and BL50_AccessoryKit DENALI ATV Plow Accessory Kit with Pulley kit - 50" Plow - Honda Rancher

DENALI ATV Universal Snow Plows are made to handle the toughest conditions and hold up against sand, snow and ice. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the ATV, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your ATV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable universal snowplow mount plate is specifically engineered to fit most ATVs and can remain on your vehicle year round.

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.

Kit Contents:

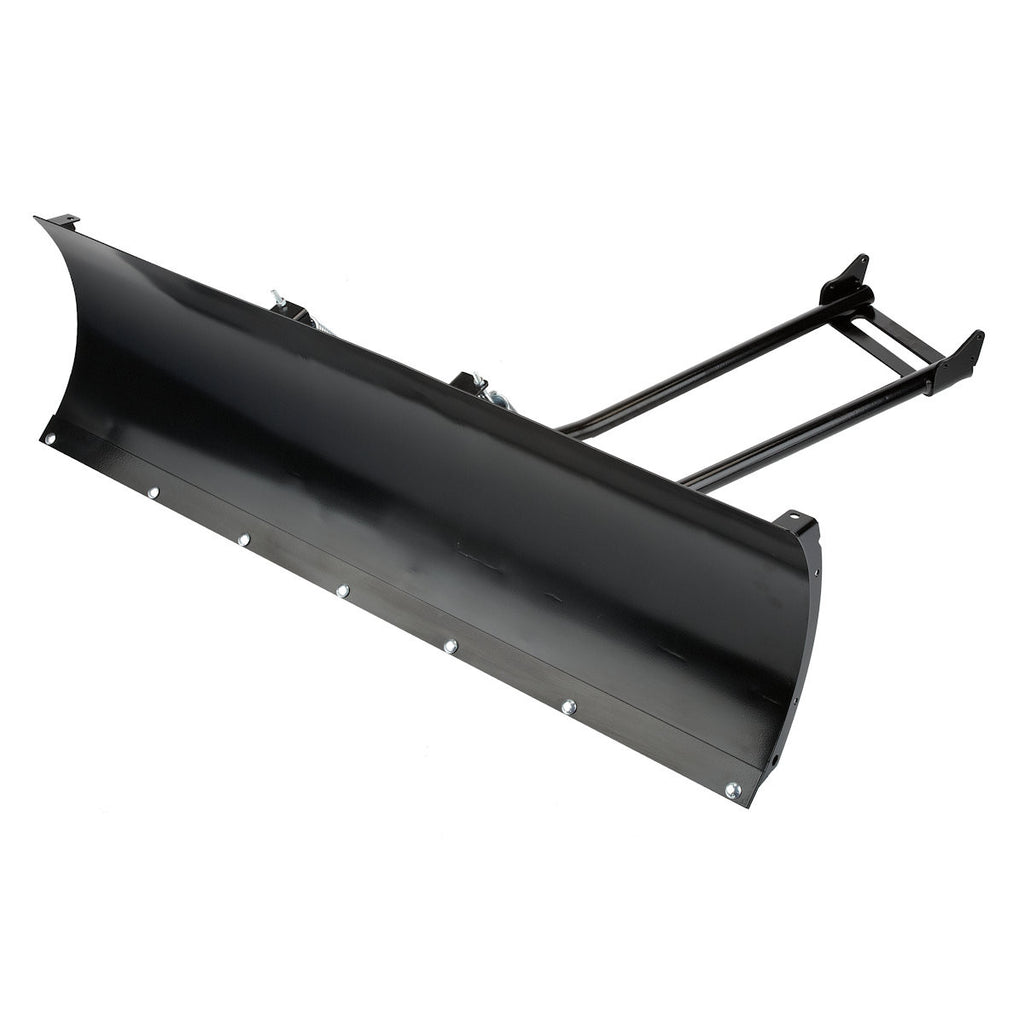

ATV Snow Plow Blade (50″ or 60″)
ATV Pushtubes
Wearbar
Skid Feet
Plow Mount (Patent# US8505973B2)
Installation Hardware and Instructions

Specs:
Snow plow blade (17 inch scoop) and leading horizontal supports formed from one piece of 11 gauge steel

Plow blade sizes available - 50" (UP50STBK) and 60" (UP60STBK)
Four 7 gauge ribs run the full height of the plow blade
Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
65 degree attach angle and over center design ensures snow rolls up and is thrown forward
Pushtubes easily position the snow plow blade in 5 different angles 0, 12.5 & 25 degrees
7 gauge, Grade 50 steel wear bars for maximum durability
Height adjustable steel skid feet
3 Year Warranty

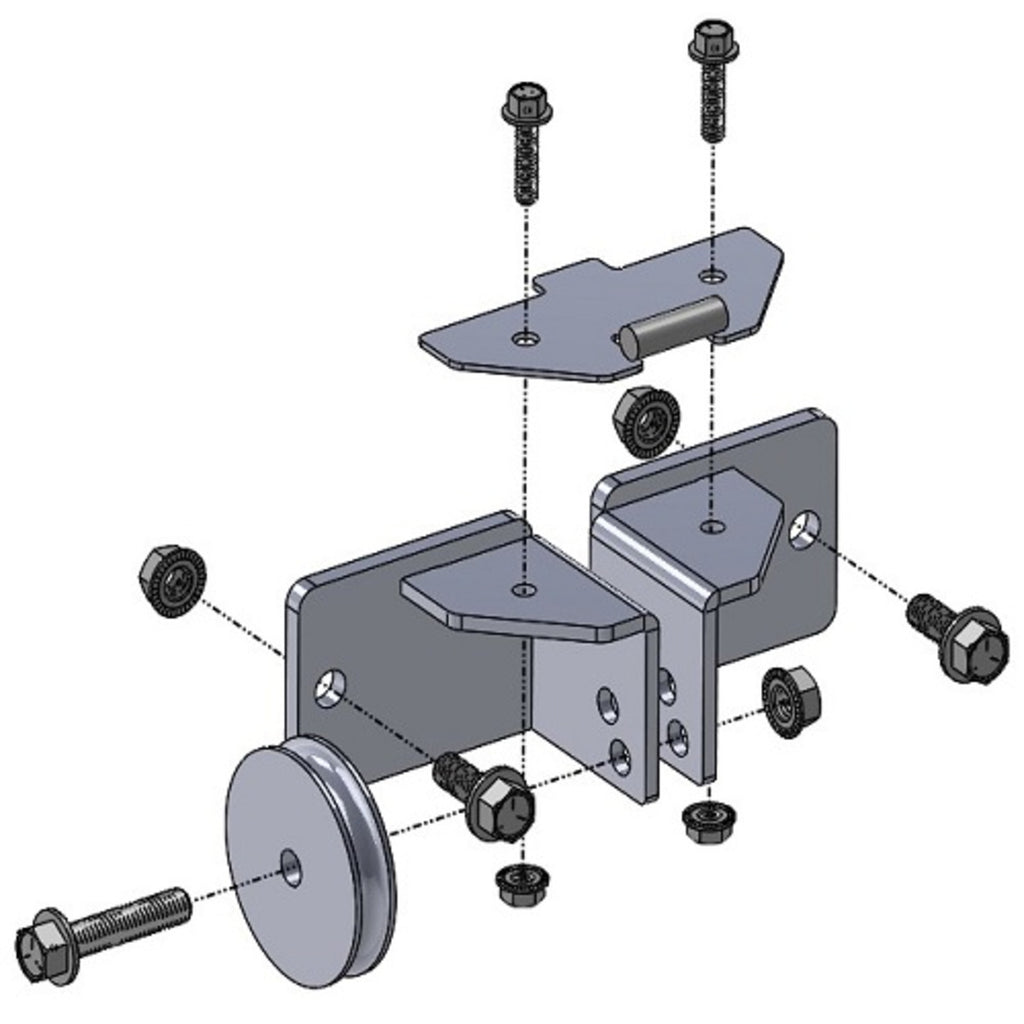

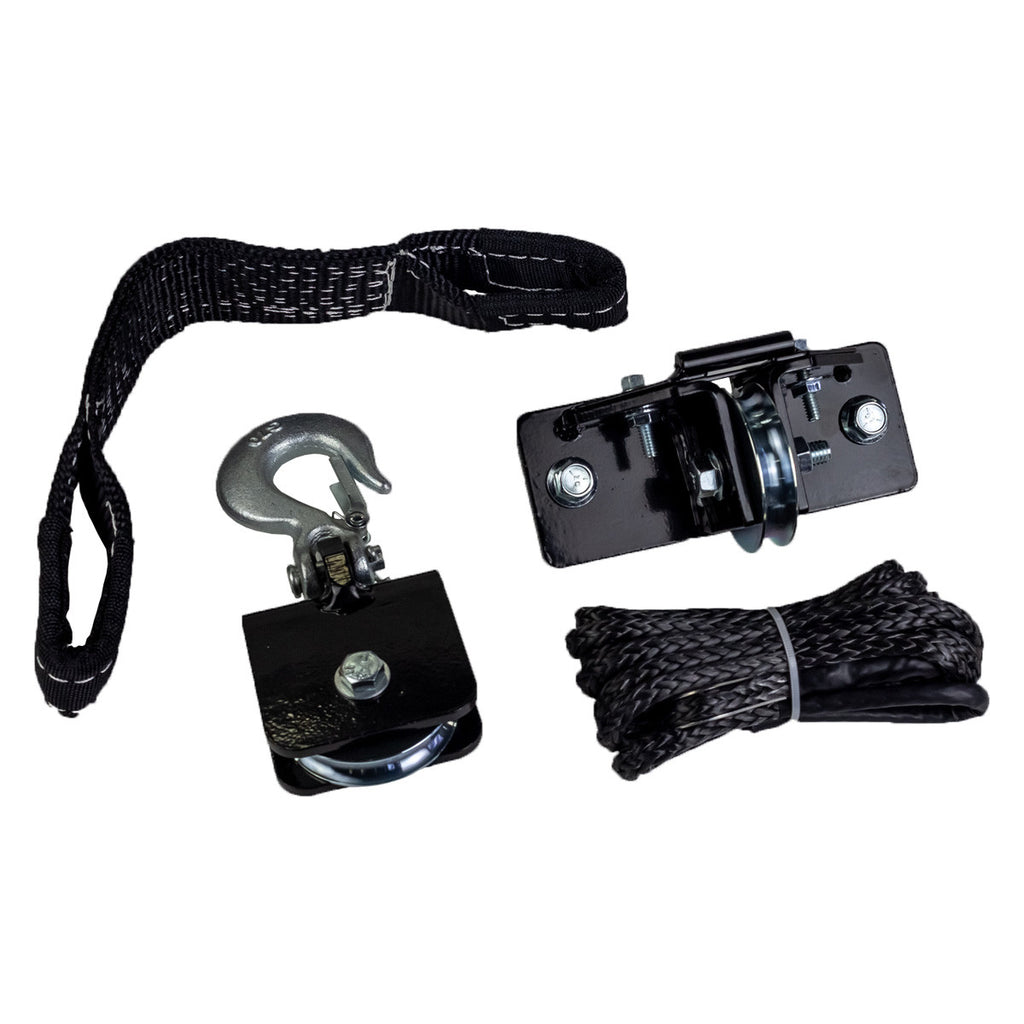

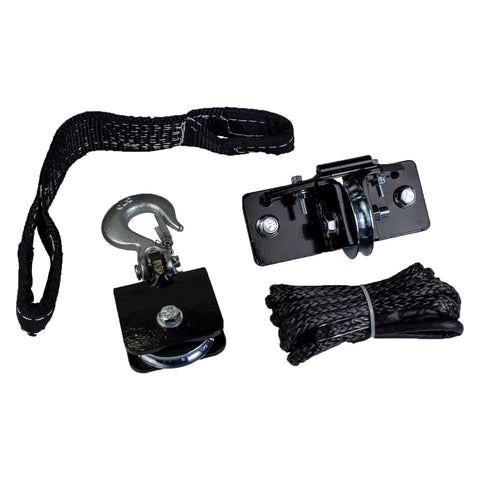

Plow Pulley Fairlead Features:

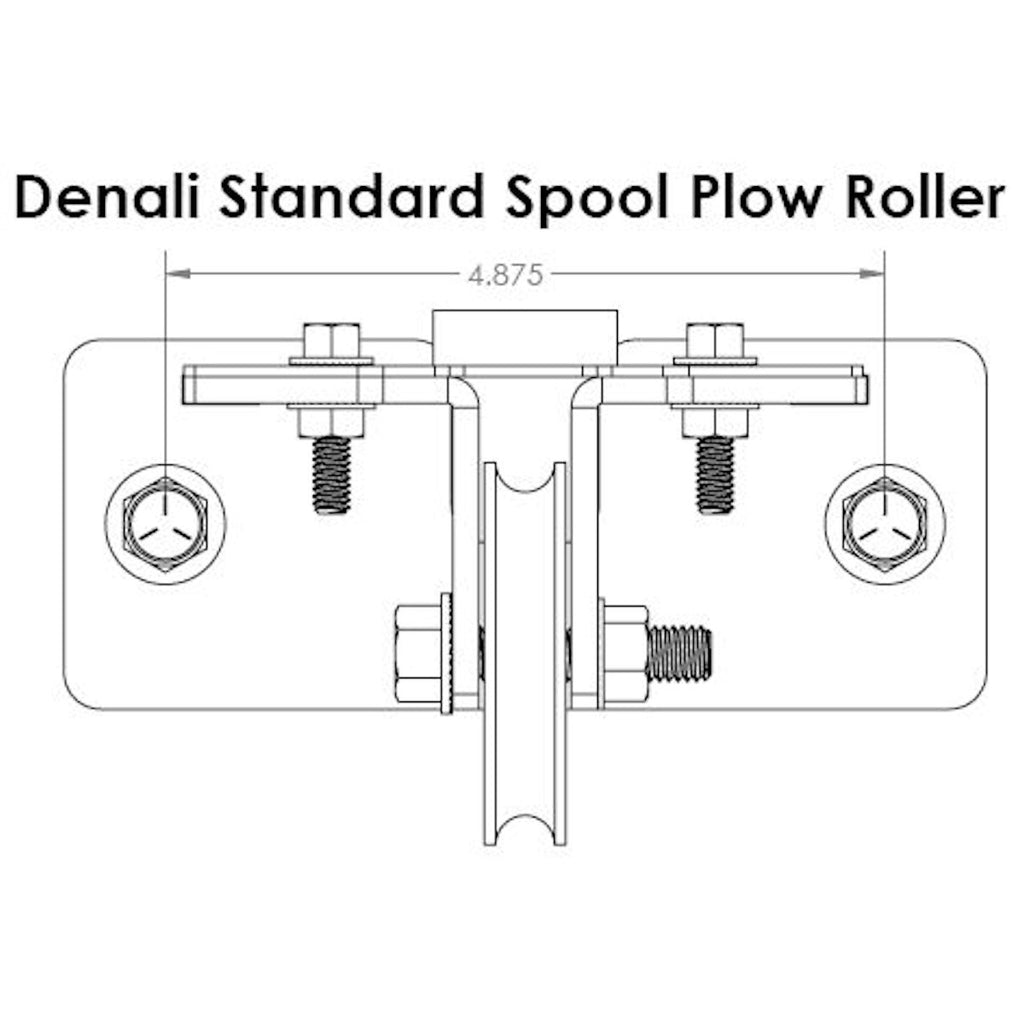

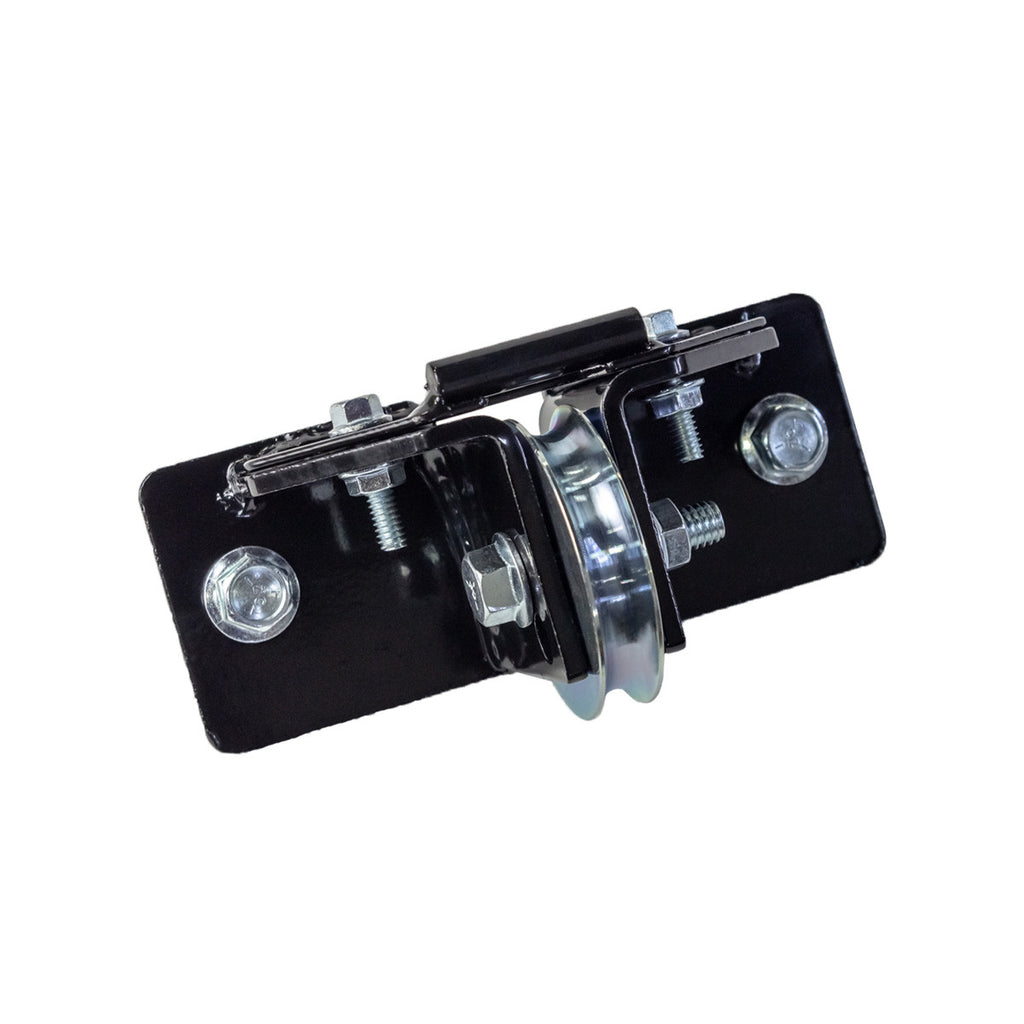

    • Roller
      •      Replaces the winch fairlead during the plow season
      •      For use with Steel AND Synthetic cables
      •      Curved cable groove helps eliminate flattening and breaking of cable

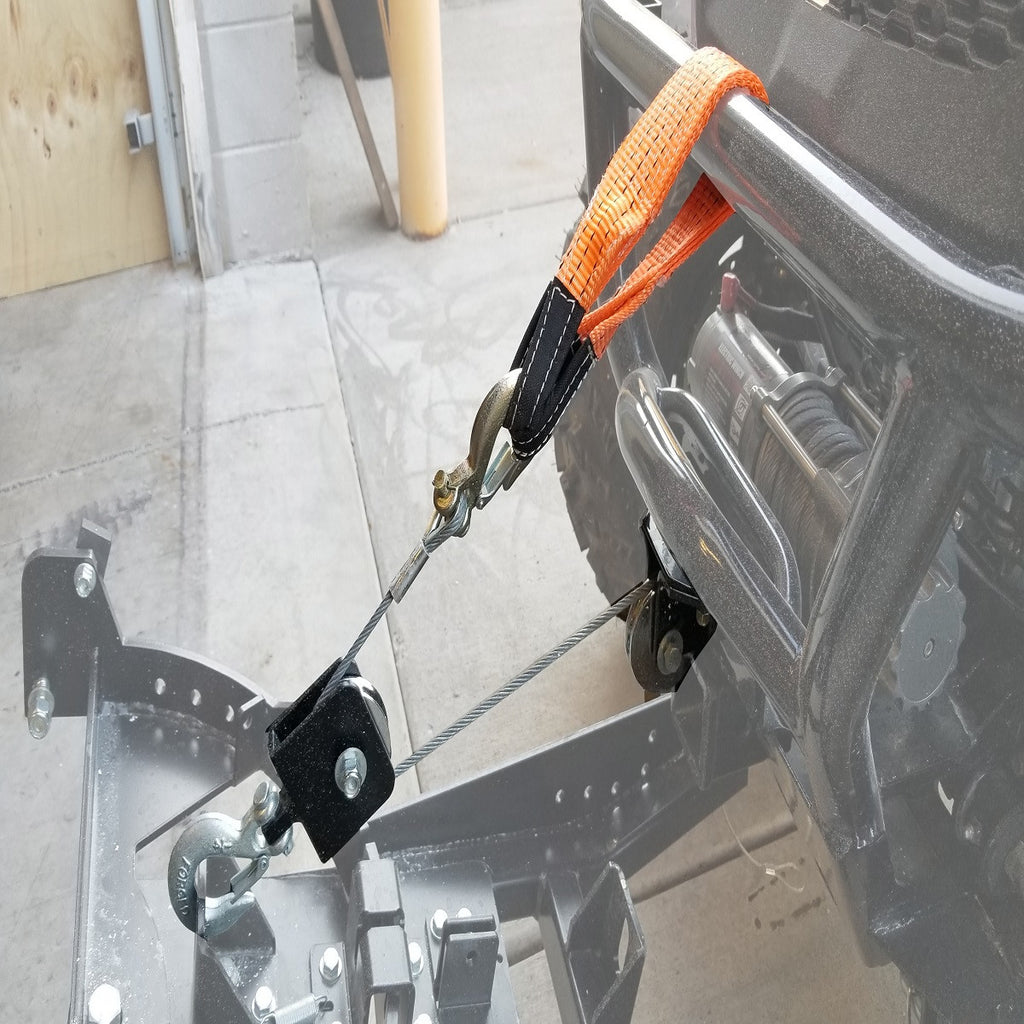

    • Sheave
      •      Includes pulley, 1/4″ clevis hook and nylon strap

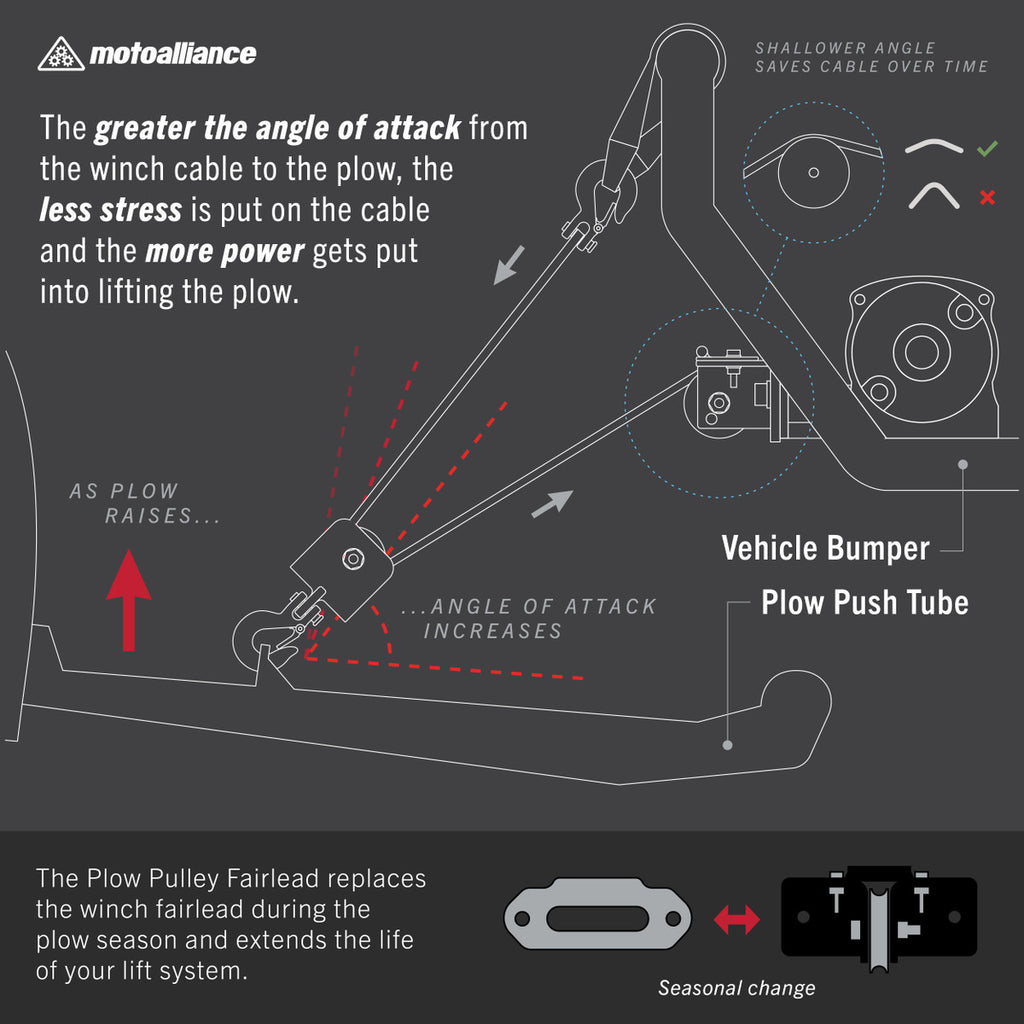

      •      Allows greater precision when raising/lowering plow blade and increases the angle of pull

  • Cable
    •      12′ length, 1/4″ diameter
    •      Single braid, dyneema rope with galvanized steel thimble/eyelet


Fitment
• most ATV models
• Please see here for fitment or call for more information - 866.527.7637 (toll free)

Please Note will NOT work on the following machines:
• 1998-2000 Sportsman 335 4x4
• 2001-2007 Sportsman 400 4x4
• 2006 Sportsman 450
• 1996-2007 Sportsman 500 4x4
• 2001-2002 Sportsman 500 DUSE 4x4, RSE 4x4
• 2000 Sportsman 500 Remington 4x4
• all Sportsman X2 machines
