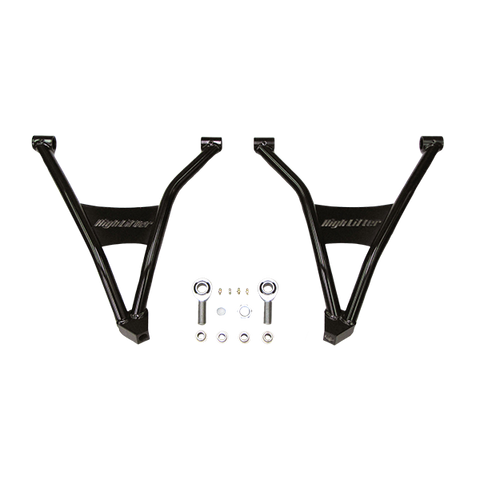

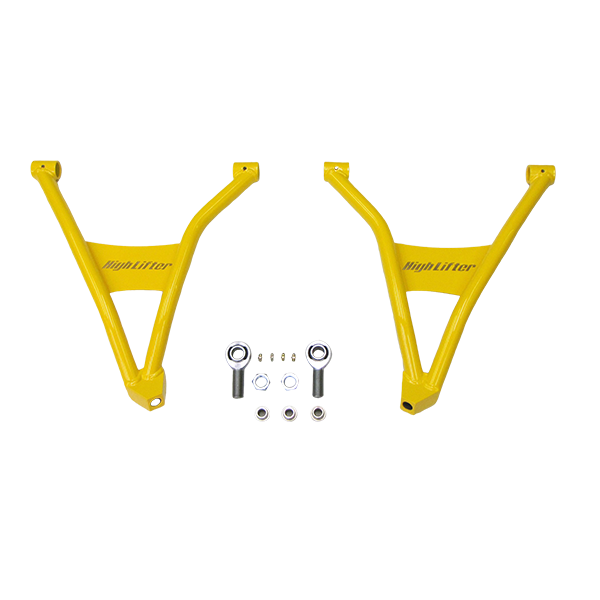

High Lifter Rear Lower Arched Control Arms Can-Am Maverick 1000

  • Sale
  • Regular price $379.95
Shipping calculated at checkout.


Whether you ride in deep mud or over rocky trails, the need for stronger control arms with added ground clearance is extremely important. Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter has solved your problem by designing tough control arms, twice as strong as your stock arms, with the added ground clearance you need for all terrains and bigger tires.

Our arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal. Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

Installation is made easy with our step by step and multi-image instructions. During installation, you can use stock bushings and ball joints for easy installation. Even better, High Lifter will install your ball joints before shipping. (See our control arms with preinstalled ball joints.)

Always check for bearings, bushings, ball joints, and brake wear before installation and replace if needed. We always recommend checking these parts before you start your installation to save time and get back on the trail sooner. See the Replacement Parts Tab to purchase replacement parts as needed.

Features:

  • Larger than average stock arms - Crafted from 1 1/8” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms - .120” wall thickness
  • Dual bend design
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Most stock powder coat colors available in stock
  • Easy to install and maintain
  • Limited Lifetime Warranty

Note: These WILL NOT work on the Can-Am Maverick 1000 XXC or Turbo models.

FITMENT:

2016 Can-Am Maverick 1000
2016 Can-Am Maverick 1000 DPS
2016 Can-Am Maverick 1000 XMR
2016 Can-Am Maverick MAX 1000 DPS
2016 Can-Am Maverick MAX 1000 XDS
2013 Can-Am Maverick 1000
2013 Can-Am Maverick 1000 Xrs
2014 Can-Am Maverick 1000
2014 Can-Am Maverick 1000 XRS
2014 Can-Am Maverick 1000 XRS-DPS
2014 Can-Am Maverick MAX 1000
2014 Can-Am Maverick MAX 1000 XRS
2014 Can-Am Maverick MAX 1000 XRS-DPS
2015 Can-Am Maverick 1000
2015 Can-Am Maverick 1000 XMR-DPS
2015 Can-Am Maverick 1000 XRS-DPS
2015 Can-Am Maverick MAX 1000
2015 Can-Am Maverick MAX 1000 XRS-DPS
2017 Can-Am Maverick 1000 DPS
2017 Can-Am Maverick MAX 1000 DPS
2018 Can-Am Maverick 1000 DPS
2018 Can-Am Maverick MAX 1000 DPS
