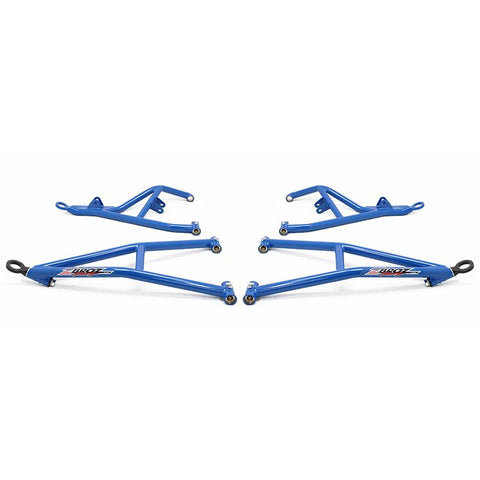

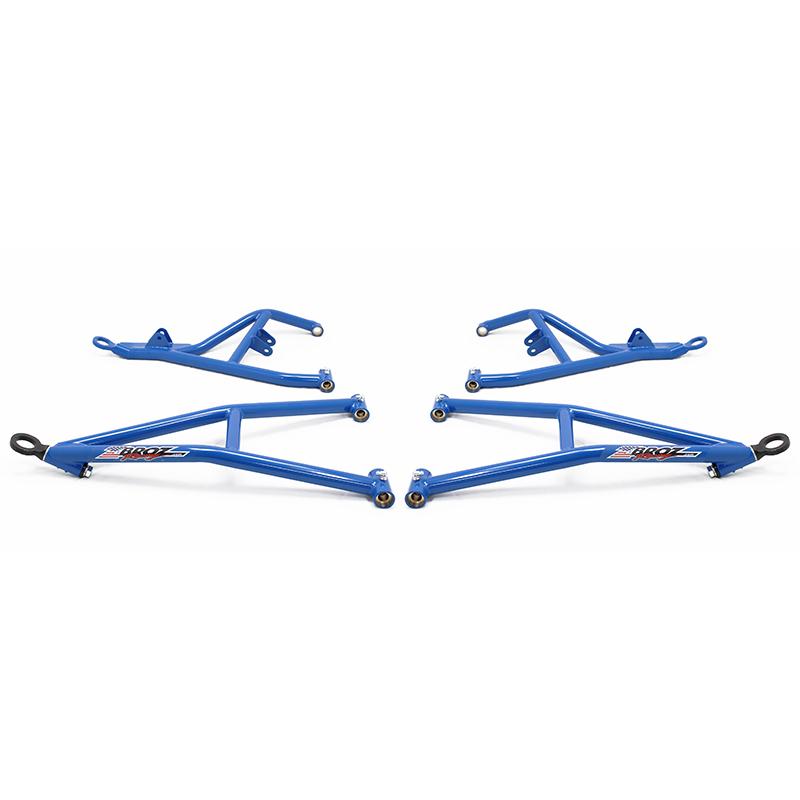

This Zbroz A-Arm kit is built from 1.125" Diameter DOM steel tube to take on any mountain trail, rock crawling, and desert/dune rally action. All joints are precision Tig welded at every connection and crossbar point to ensure strength and quality. All pivot points have pre-installed Brass Bushings and grease zerks to last longer than stock with all the abuse of off-road driving.
Our Maximum Ground Clearance design gives you the added advantage to drive over those a-arm snagging obstacles while still protecting your front axles. Zbroz Racing was the original innovator of the Maximum Ground Clearance A-Arm design for ATVs and Snowmobile A-Arms since 2002. We took that proven MGC design into the aftermarket UTV A-Arm industry In 2008 with our RZR 800 LT kit before other competitors.
+2" Forward Design Looking to run larger tires? Larger tires are key for mountain trail, rock crawling and high-speed desert/dune racing. Easily fit 30" to 33" tall tires without modification or fender trimming by simply installing this A-Arm Kit. Our +2 forward design extends your wheelbase forward 2 inches without changing steering geometry and remaining within all OEM steering component specs.
The Lower A-Arms feature our Camber Adjustable ball joint housing that allows you to fine-tune the camber settings on your RZR. Simply unbolt the ball joint housing and add or remove included camber shims. Each shim will adjust the camber by 1 degree. All Camber Adjustable A-Arm Kits are shipped with negative 1-degree camber. Exactly what you need for serious mountain trail, rock crawling, and desert/dune riding. This Camber Adjustable feature allows total adjustment so that you can fine-tune camber on each side. We've experienced brand new RZR's where the frame or frame a-arm mounting points are slightly off side to side. With this Camber Adjustable A-Arm Kit, you will have complete fine camber adjusting control.
Our ball joint housing specs are compatible with OEM and most aftermarket ball joints. We offer a pre-installed ball joints option using our signature Titan Series Heavy Duty Ball Joints for the Lower A-Arms. And Titan Series Reverse Load Heavy Duty Upper Ball Joints for the Upper A-Arms. *When installing, you will reuse the OEM Upper Pivot Caps/and Pivot Shaft, and OEM Lower Pivot Caps and OEM Lower Pivot Shafts.
Easy to install with a jack or lift in your driveway or garage with basic tools.
- Upper A-Arms with pre-installed Brass Bushings and Pivot Grease Zerks
- Lower A-Arms with Pre-installed Brass Bushings and Pivot Grease Zerks
- (8) Camber Shims
Available Colors: Black, RZR Red, White, Orange Madness, Voodoo Blue, Turbo Orange and Lime Squeeze
- Polaris RZR RS1 (2018-2021)
