Viper UTV Winch - V2 Wide Spool

  • Sale
  • Regular price $399.00
Shipping calculated at checkout.

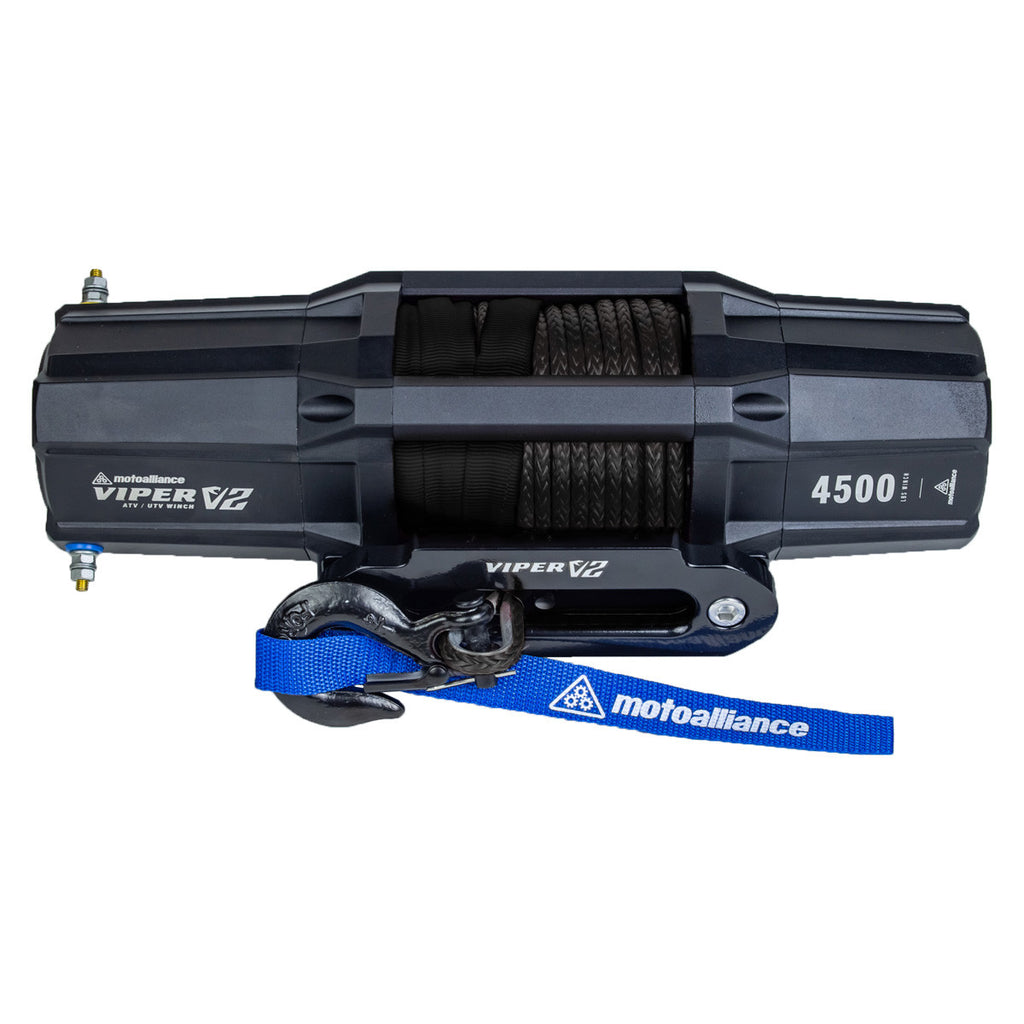

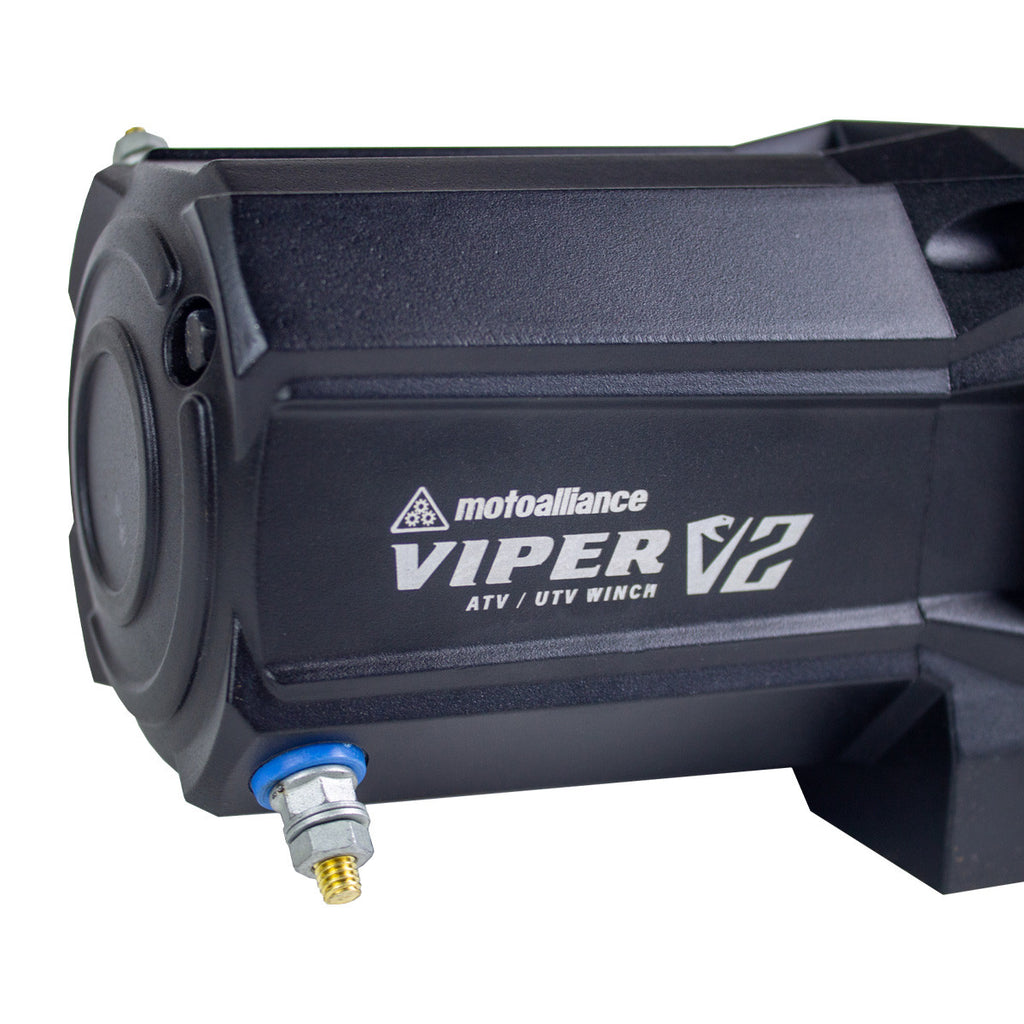

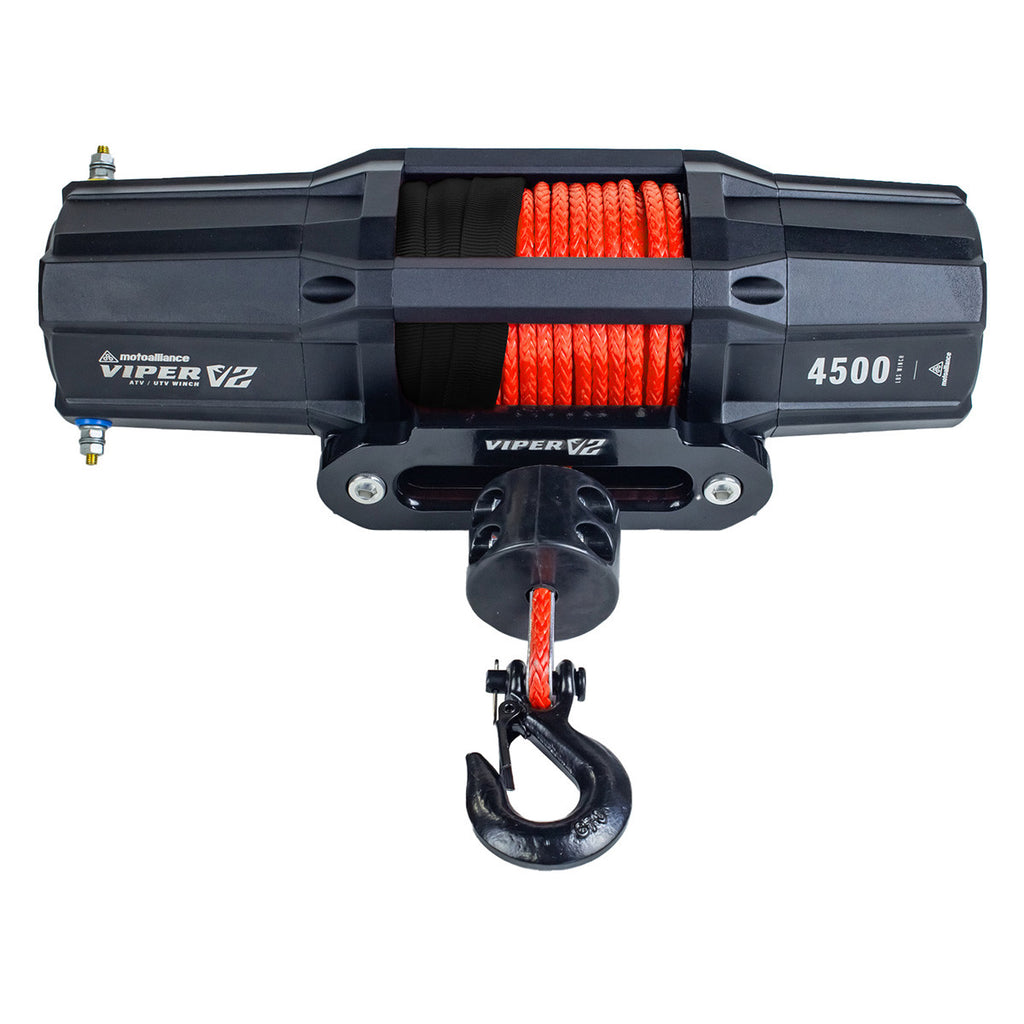

Viper V2 Wide Spool UTV Winch - a NEW GENERATION OF VIPER!

The VIPER V2 winch is the next evolution in the long-trusted VIPER line of ATV/UTV winches by MotoAlliance. Boasting a sleek design to match next-gen machines, sealed with an IP67 waterproof rating, and constructed with durable corrosion-resistant aluminum, V2 winches will handle whatever your outdoor lifestyle throws at them. Plus, every V2 comes with a wireless remote switch to make winching operations safer and more convenient.

Riders who love aesthetics: the V2 has been designed to impress. Every component, from the laser-marked winch body to the blacked-out stainless-steel hook to the “stealth” wiring, falls in line with the elevated design standard of VIPER Winches of 2022. In addition, all V2s are hand-wound with your color choice of USA-made AmSteel®-Blue synthetic rope.

The VIPER V2 is a great choice for discerning riders who love to push their machines to the limits. winch.


Features:
  • • IP67 Waterproof Rating
  • • Wireless Remote System with unique frequency
  • • Flush Mount Dash Switch
  • • Planetary metal gear train and permanent magnet motor
  • • Automatic brake
  • • ″Whisper″ quiet greasing system
  • • Limited Lifetime Warranty (winch) / Rope (1 year)

Kit Contents:
  • • 65′ x ¼″ diameter AmSteel®-Blue Synthetic Cable (1 year warranty)
  • • Aluminum Hawse Fairlead
  • • Wireless Remote Switch
  • • Flush Mount Dash Switch
  • • Contactor & Wiring

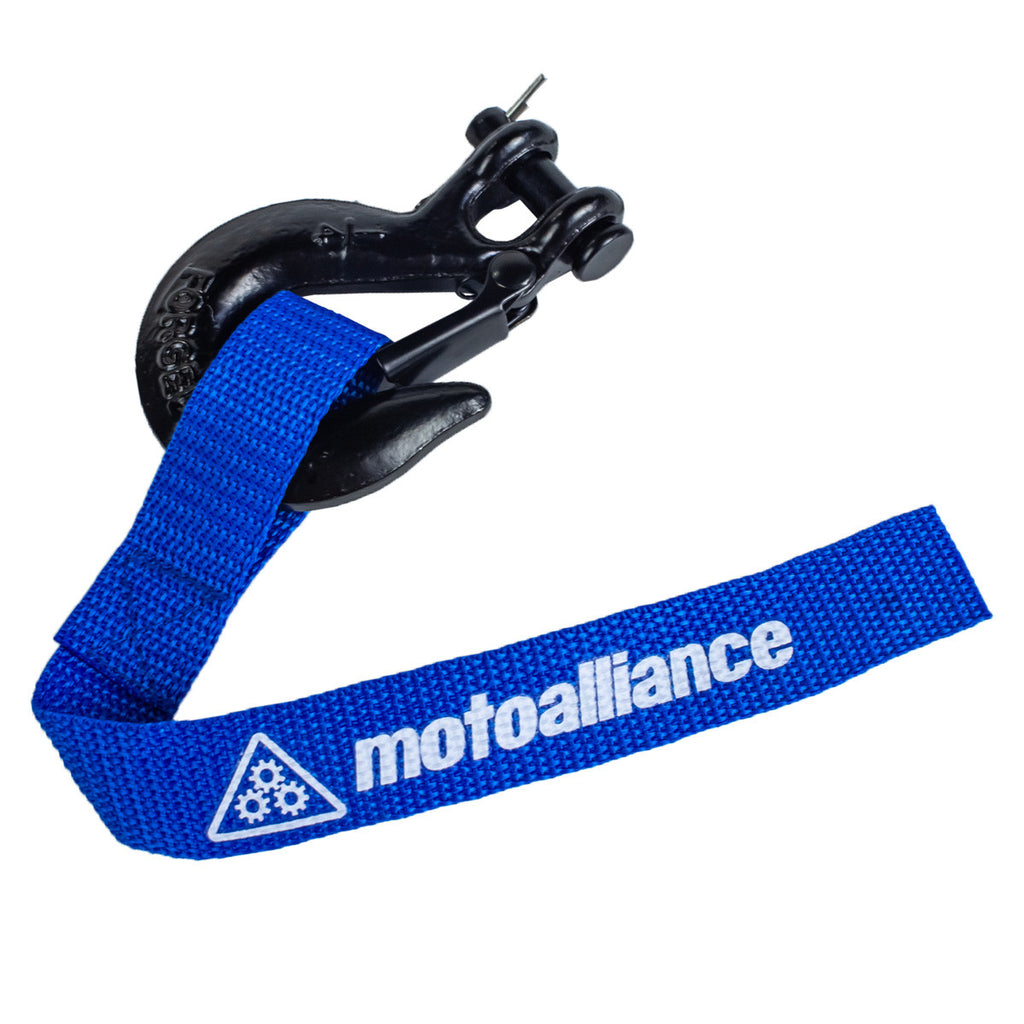

  • • Black Clevis Hook
  • • Rubber Line Stopper (two-piece)
  • • Hand Saver Strap
  • • Installation Hardware and Instructions

Specs
  • • Cable - AmSteel®-Blue Synthetic, 8,600lb max load rating
  • • Motor - 12V DC, Sealed permanent magnet
  • • Gearing / Gear Ratio - 3-Stage planetary/136:1
  • • Brake - Automatic, 100% load holding

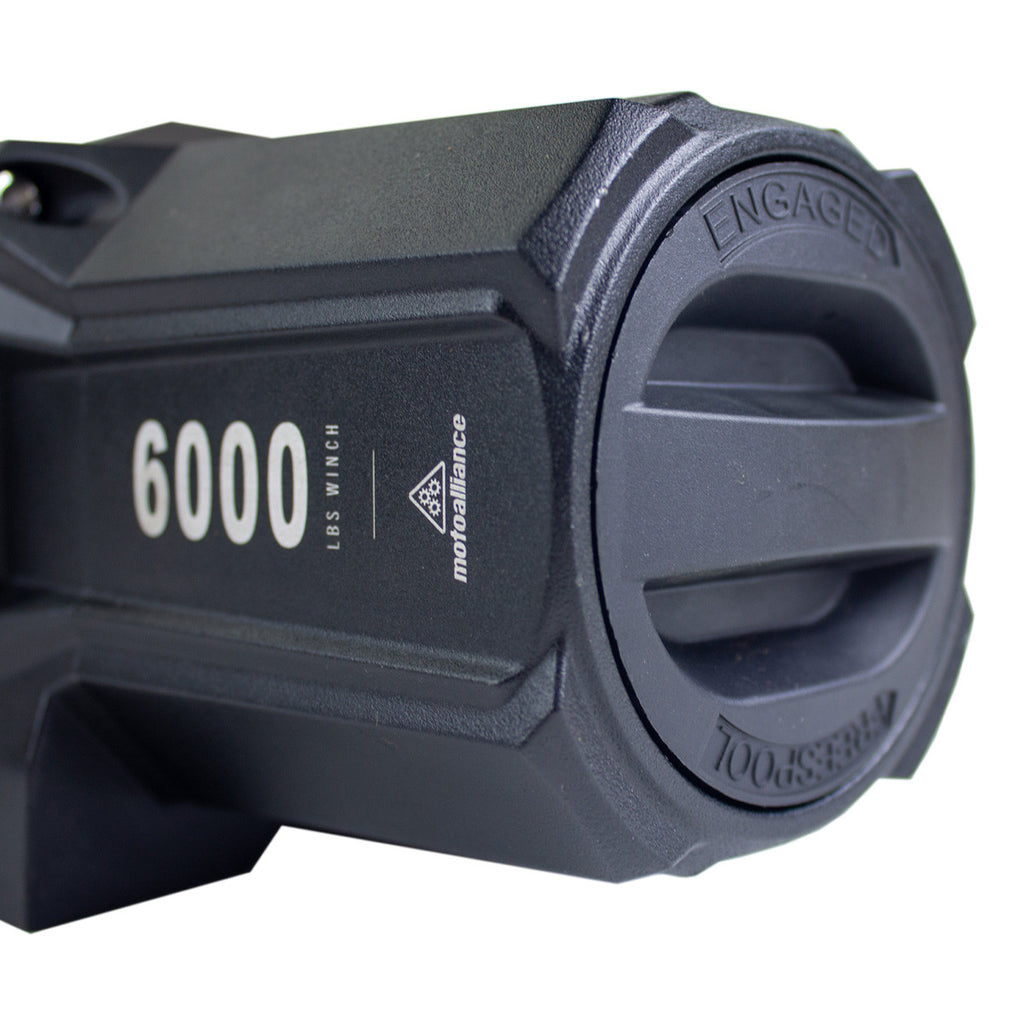

  • • Clutch - Cam Activated
  • • Wiring - 5 gauge (English) – 126/.4 (Metric)
  • • Tie Rod, Fairlead Hardware, Motor Terminals - Stainless Steel
  • • Mounting Bolt Pattern - 3.0 inch x 6.67 inch (76mm x 169.42mm)
  • • Dimensions:
    • •15 x 4 1/2 x 4 3/4 inches


Scratch & Dent Winch Mounts:
Scratch & dent mount plates are for sale, available for a discounted price. They include the mount plate & installation instructions with a full hardware list. Hardware is not guaranteed to be included.


Optional Extended Wiring
Two (2), 5 gauge cables, 12' each - this extra length of cable will easily reach batteries that are in the rear of the UTV.
Please Note: both ends of cables are eyelets



Optional Extended Service Plan
VIPER Elite wide spool UTV winches are eligible for a two (2) year, extended service plan, where all maintenance and repairs are covered no questions asked Simply send in your winch and we will take care of it from there! Plan details include:
  • • All repair and service up to the full replacement value of the winch - no questions asked
  • • Coverage is for every part of the winch, including cables and fairleads
  • • Receive a 25% off voucher at the end of two (2) years for the use on a new winch or any MotoAlliance product


Note: the Universal fairlead mount plate included will only mount to a flat surface or to a "winch ready" UTV / SxS. We have many custom mount plates designed to bolt on to your UTV / SxS.
